TG-G-84 Parts Diagram

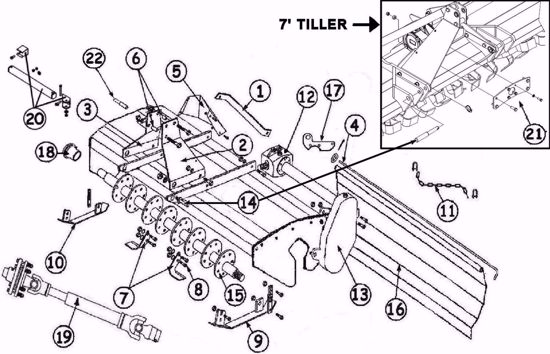

Exploded Parts

(1) 380108 LIFT ARM BRACE3/8 X 2 X 31 1/2

LIFT ARM BRACE3/8 X 2 X 31 1/2

$55.07

(2) 403070 LIFT ARM WELDMENT-LH 84"

LIFT ARM WELDMENT-LH 84"

$201.78

(3) 403071 LIFT ARM WELDMENT-RH 84"

LIFT ARM WELDMENT-RH 84"

$201.78

(4) 505015 TILLER TAILGATE ROD-84

TILLER TAILGATE ROD-84

$34.03

(5) 505025 TILLER LIFT ARM CENTER

TILLER LIFT ARM CENTER

$44.90

(6) 505030 TILLER LIFT ARM SPACER KIT

TILLER LIFT ARM SPACER KIT

$20.44

(7) 505066 TILLER TINE SET 84"

TILLER TINE SET 84"

$545.48

(8) 505132 TINE BOLT PKG. 132 PCS.

TINE BOLT PKG. 132 PCS.

$355.67

(9) 505050 TILLER SKID SHOE KIT LH

TILLER SKID SHOE KIT LH

$73.64

(10) 505057 TILLER SKID SHOE KIT RH

TILLER SKID SHOE KIT RH

$73.62

(11) 505143 TILLER CHAIN KIT

TILLER CHAIN KIT

$15.19

(12) 184068 7FT TOP GEARBOX TILLER ASM RTA

7FT TOP GEARBOX TILLER ASM RTA

$597.36

(13) 184069 GEARBOX TILLER RTS-50

GEARBOX TILLER RTS-50

$597.36

(14) 500003 STRAIGHT LIFT PIN CAT. 1 TO 2

STRAIGHT LIFT PIN CAT. 1 TO 2

$16.21

(15) 402064 ROTOR ASSEMBLY

ROTOR ASSEMBLY

Call for pricing

(16) 402063 TG-G-84 BACK PLATE ASMB

TG-G-84 BACK PLATE ASMB

$263.71

(17) 380050 CHAIN LUG TG-G TILLER

CHAIN LUG TG-G TILLER

$35.14

(18) 184070 OUTBOARD HUB ASSEMBLY

OUTBOARD HUB ASSEMBLY

$157.59

(19) 147222 7" CLUTCH PTO SHAFT FOR 7' TIL

7" CLUTCH PTO SHAFT FOR 7' TIL

$502.20

(20) 505022 TILLER SUPPORT STAND PKG.

TILLER SUPPORT STAND PKG.

$32.56

(21) 505026 TOP GEARBOX SUPPORT PKG.

TOP GEARBOX SUPPORT PKG.

$16.19

(22) 194111 CAT 1 TO 2 TOPLINK PIN

CAT 1 TO 2 TOPLINK PIN

$18.48
