TG-G-60 Parts Diagram

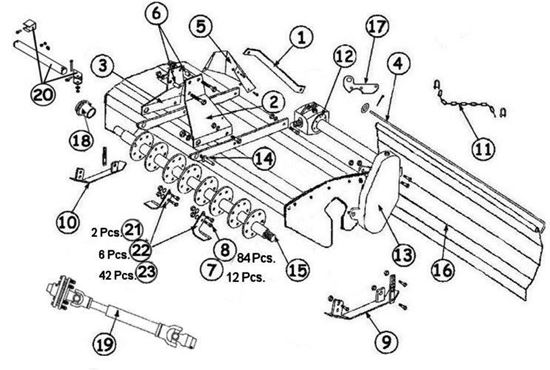

Exploded Parts

(1) 380108 LIFT ARM BRACE3/8 X 2 X 31 1/2

LIFT ARM BRACE3/8 X 2 X 31 1/2

$55.07

(2) 403068 LIFT ARM WELDMENT-LH

LIFT ARM WELDMENT-LH

$194.73

(3) 403069 LIFT ARM WELDMENT-RH

LIFT ARM WELDMENT-RH

$194.73

(4) 505016 TILLER TAILGATE ROD-60

TILLER TAILGATE ROD-60

$49.34

(5) 505025 TILLER LIFT ARM CENTER

TILLER LIFT ARM CENTER

$44.90

(6) 505030 TILLER LIFT ARM SPACER KIT

TILLER LIFT ARM SPACER KIT

$20.44

(7) 505012 TILLER TINE BOLT SET (12PCS)

TILLER TINE BOLT SET (12PCS)

$42.93

(8) 505084 TILLER TINE BOLT SET (84PCS)

TILLER TINE BOLT SET (84PCS)

$226.34

(9) 505050 TILLER SKID SHOE KIT LH

TILLER SKID SHOE KIT LH

$73.64

(10) 505057 TILLER SKID SHOE KIT RH

TILLER SKID SHOE KIT RH

$73.62

(11) 505143 TILLER CHAIN KIT

TILLER CHAIN KIT

$15.19

(12) 184066 GEARBOX TILLER ASM. RTA-50 700

GEARBOX TILLER ASM. RTA-50 700

$597.36

(13) 184069 GEARBOX TILLER RTS-50

GEARBOX TILLER RTS-50

$597.36

(14) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1

$13.83

(15) MISC (NotForSale)

MISC

$0.00

(16) 402061 None

BACK PLATE ASSEMBLY 60" RT

$191.28

(17) 380050 CHAIN LUG TG-G TILLER

CHAIN LUG TG-G TILLER

$35.14

(18) 184070 OUTBOARD HUB ASSEMBLY

OUTBOARD HUB ASSEMBLY

$157.59

(19) 147122 22" PTO /W SLIP CLUTCH

22" PTO /W SLIP CLUTCH

$289.12

(20) 505022 TILLER SUPPORT STAND PKG.

TILLER SUPPORT STAND PKG.

$32.56

(21) 505002 TILLER TINE SET 2PC

TILLER TINE SET 2PC

$35.75

(22) 505006 TILLER TINE SET 6PC

TILLER TINE SET 6PC

$71.52

(23) 505042 TILLER TINE SET 60IN

TILLER TINE SET 60IN

$373.57
