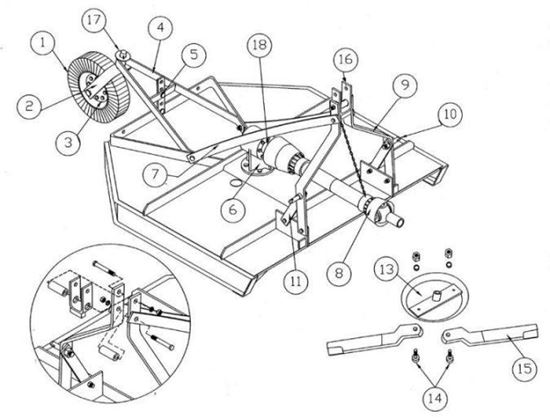

L-60-60-P Parts Diagram

Exploded Parts

(1) 403001 TIRE & RIM 40IN - 72IN KUTTER

TIRE & RIM 40IN - 72IN KUTTER

$95.52

(2) 403019 WHEEL FORK 40" 4' 5' 6K

WHEEL FORK 40" 4' 5' 6K

$107.89

(3) 191100 FABRICATED HUB ASSEMBLY

FABRICATED HUB ASSEMBLY

$28.65

(4) 401019 A-FRAME 5' KUTTER

A-FRAME 5' KUTTER

$132.92

(5) 310081 HEIGHT ADJUSTER1/4"X 2"X 10"

HEIGHT ADJUSTER1/4"X 2"X 10"

$26.24

(6) 184060 60HP GEAR BOX 1:1.47 250135

60HP GEAR BOX 1:1.47 250135

$465.20

(7) 310073 LIFT ARM BRACE 3/8"X 2"X 60"

LIFT ARM BRACE 3/8"X 2"X 60"

$60.44

(8) 147029 29" PTO SHAFT SHEAR PIN 810407

29" PTO SHAFT SHEAR PIN 810407

$271.37

(9) 310088 LIFT ARM 1/2"X 2 1/2"X 35" 4'

LIFT ARM 1/2"X 2 1/2"X 35" 4'

$60.16

(10) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1

$13.83

(11) 310071 BRACE 3/8"X 2"X 13" 4' 5'

BRACE 3/8"X 2"X 13" 4' 5'

$37.81

(12) 404403 XB TILLER ROTOR

XB TILLER ROTOR

Call for pricing

(13) 403032 STUMP JUMPER 60HP

STUMP JUMPER 60HP

$175.37

(14) 501001 BLADE BOLT SET (KK)

BLADE BOLT SET (KK)

$43.70

(15) 501124 24" X 3" KUTTER BLADE SET

24" X 3" KUTTER BLADE SET

$70.96

(16) 501027 SWIVEL KIT - KUTTER

SWIVEL KIT - KUTTER

$60.00

(17) 501013 WHEEL WASHER KIT

WHEEL WASHER KIT

$5.73

(18) 500101 SHEAR BOLT GRADE 2/ 1/2" X 3"

SHEAR BOLT GRADE 2/ 1/2" X 3"

$11.89
