L-48-40-P-FH Parts Diagram

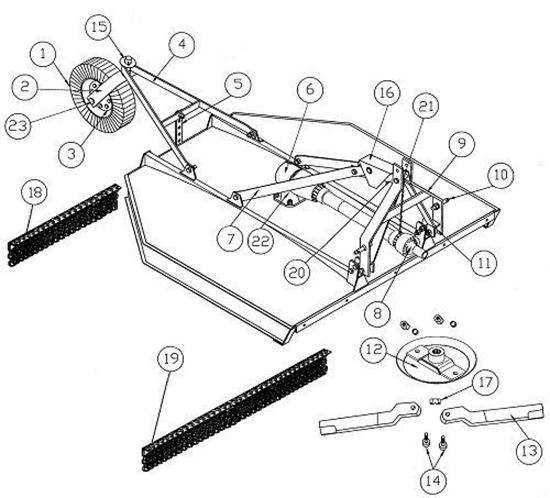

Exploded Parts

(1) 403001 TIRE & RIM 40IN - 72IN KUTTER

TIRE & RIM 40IN - 72IN KUTTER

$95.52

(2) 403019 WHEEL FORK 40" 4' 5' 6K

WHEEL FORK 40" 4' 5' 6K

$107.89

(3) 191100 FABRICATED HUB ASSEMBLY

FABRICATED HUB ASSEMBLY

$28.65

(4) 401024 A-FRAME CONCAVE DECK 5' KUTTER

A-FRAME CONCAVE DECK 5' KUTTER

$108.15

(5) 310099 HEIGHT ADJ BAR 3/8 X2 X 12 3/8

HEIGHT ADJ BAR 3/8 X2 X 12 3/8

$29.60

(6) 184005 40HP GEAR BOX 1:1.47 250001

40HP GEAR BOX 1:1.47 250001

$378.29

(7) 360685 LIFT ARM PIVOT BRACE

LIFT ARM PIVOT BRACE

$20.02

(8) 147029 29" PTO SHAFT SHEAR PIN 810407

29" PTO SHAFT SHEAR PIN 810407

$271.37

(9) 403661 LIFT ARM ASSY-QA FLEX HITCH-4'

LIFT ARM ASSY-QA FLEX HITCH-4'

$175.89

(10) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1

$13.83

(11) 502010 (FM) SWIVEL LINKS

(FM) SWIVEL LINKS

$47.53

(12) 403031 STUMP JUMPER 40HP

STUMP JUMPER 40HP

$175.37

(13) 501118 18" KUTTER BLADE SET

18" KUTTER BLADE SET

$67.44

(14) 501001 BLADE BOLT SET (KK)

BLADE BOLT SET (KK)

$43.70

(15) 501013 WHEEL WASHER KIT

WHEEL WASHER KIT

$5.73

(16) 501029 PIVOT SHIELD KIT

PIVOT SHIELD KIT

$58.24

(17) 501110 CASTLE NUT 1"/W WASHER

CASTLE NUT 1"/W WASHER

$18.50

(18) 403971 4' REAR CHAIN GUARD (FH)

4' REAR CHAIN GUARD (FH)

$82.26

(19) 403970 4' FRONT CHAIN GUARD (FH)

4' FRONT CHAIN GUARD (FH)

$134.83

(20) 401031 PIVOT BAR WELDMENT

PIVOT BAR WELDMENT

$66.56

(21) 501095 FLEX HITCH SPACER KIT

FLEX HITCH SPACER KIT

$42.64

(22) 500101 SHEAR BOLT GRADE 2/ 1/2" X 3"

SHEAR BOLT GRADE 2/ 1/2" X 3"

$11.89

(23) 501280 KUTTER AXLE & NUT

KUTTER AXLE & NUT

$13.90
