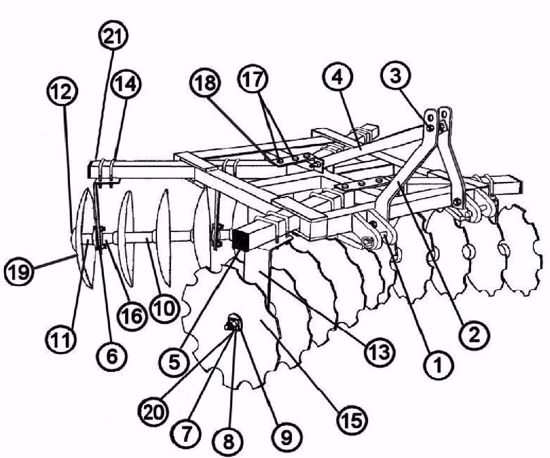

20-24-G-CBF Parts Diagram

Exploded Parts

(1) 500007 STRAIGHT LIFT PIN CAT. 1

STRAIGHT LIFT PIN CAT. 1

$22.38

(2) 360170 LIFT ARM 1/2 X 3 X 23

LIFT ARM 1/2 X 3 X 23

$48.81

(3) 504500 SPACER KIT G-STYLE EQUIPMENT

SPACER KIT G-STYLE EQUIPMENT

$12.78

(4) 360171 LA BRACE 3/8 X 2 X 31 1/2

LA BRACE 3/8 X 2 X 31 1/2

$11.63

(5) 124132 3" PLASTIC CAP BOX FRAME DISC

3" PLASTIC CAP BOX FRAME DISC

$7.44

(6) 504125 SEALED DISC BEARING ASSEMBLY

SEALED DISC BEARING ASSEMBLY

$33.25

(7) 178010 AXLES 1"X1"X41 3/4" 7 1/2 BFD

AXLES 1"X1"X41 3/4" 7 1/2 BFD

$85.02

(8) 504280 LOCKNUT 1" DISC (4-PK)

LOCKNUT 1" DISC

$20.53

(9) 129605 NUT WASHERS 3 1/2" CAST IRON B

NUT WASHERS 3 1/2" CAST IRON B

$8.63

(10) 129500 SPACERS (CAST IRON)LARGE DISC

SPACERS (CAST IRON)LARGE DISC

$19.10

(11) 129550 3 5/8" CAST IRON SPACERS BF DI

3 5/8" CAST IRON SPACERS BF DI

$13.16

(12) 129600 BUMP WASHERS 6 5/8" CAST IRON

BUMP WASHERS 6 5/8" CAST IRON

$21.16

(13) 324055 BEARING STAND PLATE 1/2"X5"X16

BEARING STAND PLATE 1/2"X5"X16

$56.30

(14) 504099 HANGER BOLT SET

HANGER BOLT SET

$28.11

(15) 189220 DISC BLADE NOTCHED 20"

DISC BLADE NOTCHED 20"

$45.81

(16) 129525 SPACER SPOOL 2 3/8

SPACER SPOOL 2 3/8

$11.17

(17) MISC (NotForSale)

MISC

$0.00

(18) 403027 SLIDE ADJUSTER /W HOLES

SLIDE ADJUSTER /W HOLES

$16.63

(19) 189120 DISC BLADE PLAIN 20"

DISC BLADE PLAIN 20"

$44.44

(20) 504285 JAM NUT 1" BF DISC (4 PK)

JAM NUT 1" BF DISC

$9.53

(21) 504150 WEIGHT KIT 7-1/2' BF DISC

WEIGHT KIT 7-1/2' BF DISC

$40.95

20-24-G-CBF Parts Diagram
