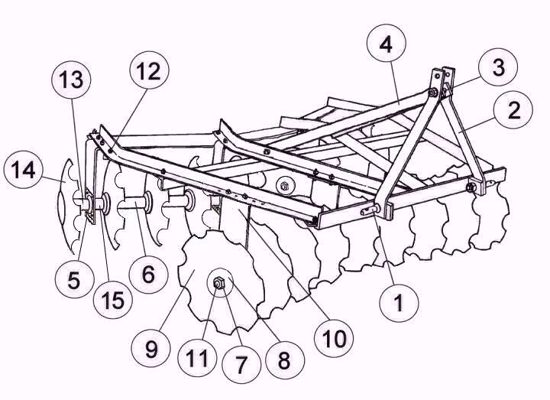

Picture of 18-16-G-SB-N Parts Diagram

18-16-G-SB-N Parts Diagram

18-16-G-SB-N Parts Diagram

Exploded Parts

(1) 500001 LIFT PINS - CAT 1

LIFT PINS (2/PK) - CAT 1
$13.83

(2) 360183 LIFT ARM 3/8 X 2 X 25

LIFT ARM 3/8 X 2 X 25
$23.24

(3) 501090 LIFT ARM SPACER KIT

LIFT ARM SPACER KIT
$15.68

(4) 360180 BRACE ARM 3/8 X 2 X 38-1/4

BRACE ARM 3/8 X 2 X 38-1/4
$55.77

(5) 504125 SEALED DISC BEARING ASSEMBLY

SEALED DISC BEARING ASSEMBLY
$33.25

(6) 129500 SPACERS (CAST IRON)LARGE DISC

SPACERS (CAST IRON)LARGE DISC
$19.10

(7) 504280 LOCKNUT 1" DISC (4-PK)

LOCKNUT 1" DISC
$20.53

(8) 322005 AXLE CAPS 1/4"X5 5/8"ROUND

AXLE CAPS 1/4"X5 5/8"ROUND
$23.63

(9) 189218 DISC BLADES NOTCHED 18"

DISC BLADES NOTCHED 18"
$27.38

(10) 322063 SEALED BEARING STAND 3/8"X5"X1

SEALED BEARING STAND 3/8"X5"X1
$56.76

(11) 401065 DISC AXLE ASSEMBLY 5 1/2' SB

DISC AXLE ASSEMBLY 5 1/2' SB
$60.46

(12) MISC (NotForSale)

MISC
$0.00

(13) 129550 3 5/8" CAST IRON SPACERS BF DI

3 5/8" CAST IRON SPACERS BF DI
$13.16

(14) 189118 DISC BLADES PLAIN 18"

DISC BLADES PLAIN 18"
$27.38

(15) 129525 SPACER SPOOL 2 3/8

SPACER SPOOL 2 3/8
$11.17

18-16-G-SB-N  Parts Diagram
